- Improving charging convenience: It can solve the connection charging problem between different models and standards of electric vehicles and charging stations
- Enhanced compatibility: It can adapt to different types and specifications of charging interfaces, allowing electric vehicles to be charged on more charging facilities
- Easy to operate: The design is usually simple with clear indicator lights on the surface, making it convenient for users to understand the charging status and easy to use
- Emergency use: When there is no suitable charging station or in case of special circumstances, the adapter can be used as an emergency measure to help the vehicle replenish electricity in a timely manner

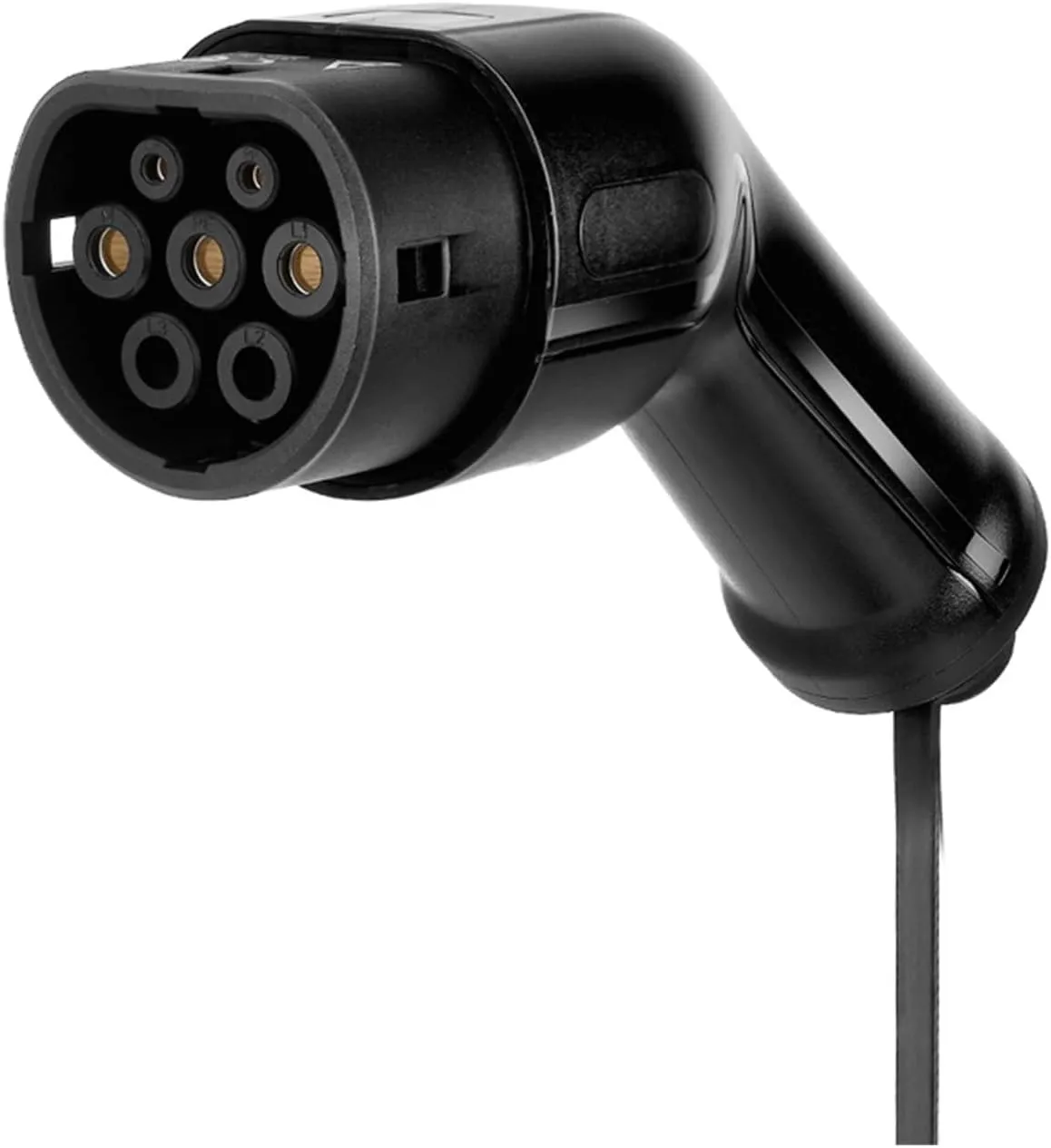

- EV Charger Type 2 Plug Female EV Side IEC62196 Compatible For Mennekes Charging Adapter 32A 16A Three Phase 480V For Electric Car Vehicle EVSE

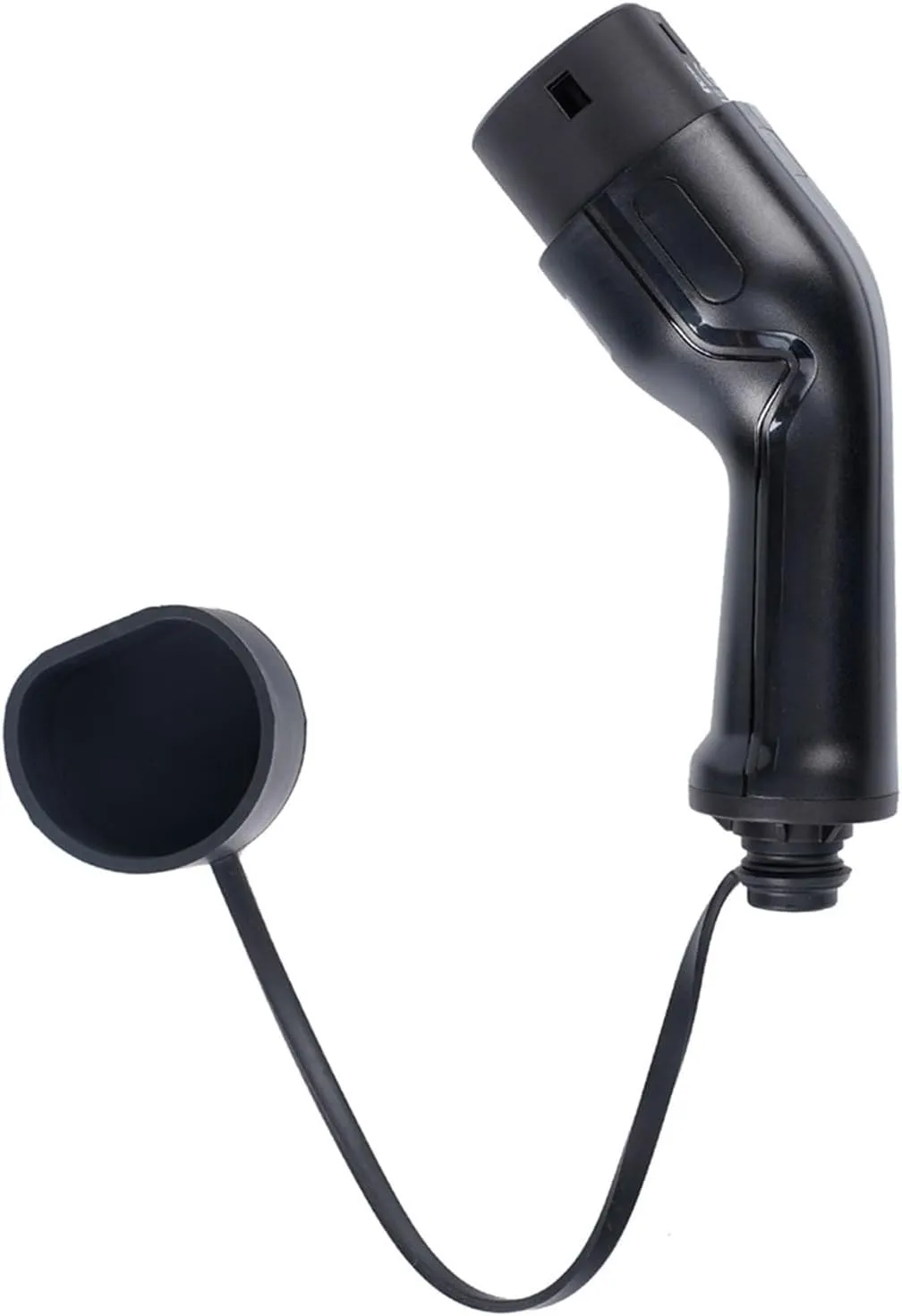

EV Charger Plug- Type 2 62196-2 Plug for EV Side without Cable
Electric Parameters
Rated V
480V (3 Phase) AC;
Rated Current (Power)
16A/ 32A 3 Phase
Frequency
50/60Hz
Withstand V
2000V
Terminal temperature rise:
<;50K
Contact Resistance
0.5m
Mechanical Performance
Mechaincal Life
>1000 times no-load plug in/ off
Withstand Impact
Dropping from a 1 m- height
Material
Enclosure
Thermoplastic, flame retardant grade UL94 V-0
Terminal
Copper alloy, silver plating
Plug Type
Plug Type
IEC 62196 Type 2 Female Plug
Work Temperature
-30 ~ 50
Work Humidity
5%~ 95%
Safety and Warranty
Ingress Protection
IP54
Package
Dimension(L/W/H)
24*16*10(CM)
GW
32A 3P 0.6KG
Packing List
EV Plug without cable * 1;
IEC62196 Type 2 EV Charger Female Plug16A 32A 3 Phase 480V
Multiple Protection
Prevent Leakage; Prevent short circuit; Flame retardant; Lightning protection; Waterproof; Prevent the flow;
Features
1.Charging plug meet IEC-62196 standard
2. Safty design to prevent users from personal injury
3.Protectionclass : IP 54 ( IN mated condition )
4. Reliability of materials ,antiflaming , environmental protection, abrasion,resistance ,impact resistance ,oil resistance and Anti -NV
Real picture
Attention: Before paying, you must choose the correct plug type (type 1 or type 2). It's very important.
==========
Type : Hand Tool Parts
Other Part Number : IEC-62196
Material Type : Thermoplastic
Item Length : 23CM
Item Width : 6.4CM
Country/Region of Manufacture : CN
Item Height : 6.4CM
Interchange Part Number : IEC-62196-2
Item Weight : 0.5KG
Manufacturer Part Number : iec62196
Product : Female EV Charging Plug Type 2
Color : Black
Current : 32A, 16A
Types : Type 2 IEC62196-2
Degree of protection : IP54
Operating temperature :
