- 1)Reliable, interference free 2.4GHz AFHDS 2A signal operation.
- 2).Associated with a High Sensitivity Receiver, This Radio System Guarantees a Jamming Free Long Range Radio Transmission Each Transmitter Has a Unique Id, When Binding with a Receiver, The Receiver Saves That Unique ID and Can Accepts Only Data From The Unique Transmitter.
- 3) Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.
- 4) The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.
- 5) Quick and extremely stable in performance. FS i6 and ia6 receivers have completed the code matching, no need to code again
Please note:the FLYSKY FS-I6 is Left hand throttle(Mode 2), the throttle stick will not return to the center up and down.
The transmitter and receiver have been pre-bound before delivery.If you are using another transmitter or receiver, follow the steps below to bind to the B/VCC port on the receiver.
1, Connect the supplied bind cable to the B/VCC port on the receiver.
2, Insert power into any other port.
3, Hold the "BIND KEY" while powering on the transmitter to enter bind mode.
4, Remove the power and bind cable from the receiver. Then connect the power cable to the B/VCC port.
5, Check the servos' operation. If anything does not work as expected, restart this procedure from the beginning.
FS-i6 Specifications:
Channels: 6
Model Type: Glider/Heli/Airplane
RF Range: 2.40-2.48GHz
brandwidth: 500KHz
brand: 142
RF Power: Less Than 20dBm
2.4ghz System: AFHDS 2A and AFHDS
Code Type: GFSK
Sensitivity: 1024
Low Voltage Warning: less than 4.2V
DSC Port: PS2;Output:PPM
Charger Port: No
ANT length: 26mm*2(dual antenna)
Transmitter Weight: 392g
Transmitter Size: 174x89x190mm
Package Size: 23.5x21.2x10.6cm
Package Weight: 676g
Power: 6V, 4*AA Battery(Not included)
Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
On-line update:yes
Certificate: CE0678,FCC
Model Memories: 20
Control Range: 500m
FS-iA6 Specifications:
Channels: 6
Frequency Range :2.4-2.48 GHz
Number of Band: 140
Transmitting Power: not more than 20dBm
Receiver Sensitivity:-105dBm
2.4G modes: Automatic frequency second generation digital systems Encoding: GFSK
Weight: 6.4g
Input Power :4.0-6.5V DC
Dimensions: 40.4x21.1x7.35 mm
Color: Black
i-BUS Interface: No
Data Acquisition Interface: No
Certification: CE0678,FCC
Usage: Suitable for RC Airplane/glider/helicopter
Compatible Transmitter: Flysky FS-i6,FS-I6X,FS-I6S

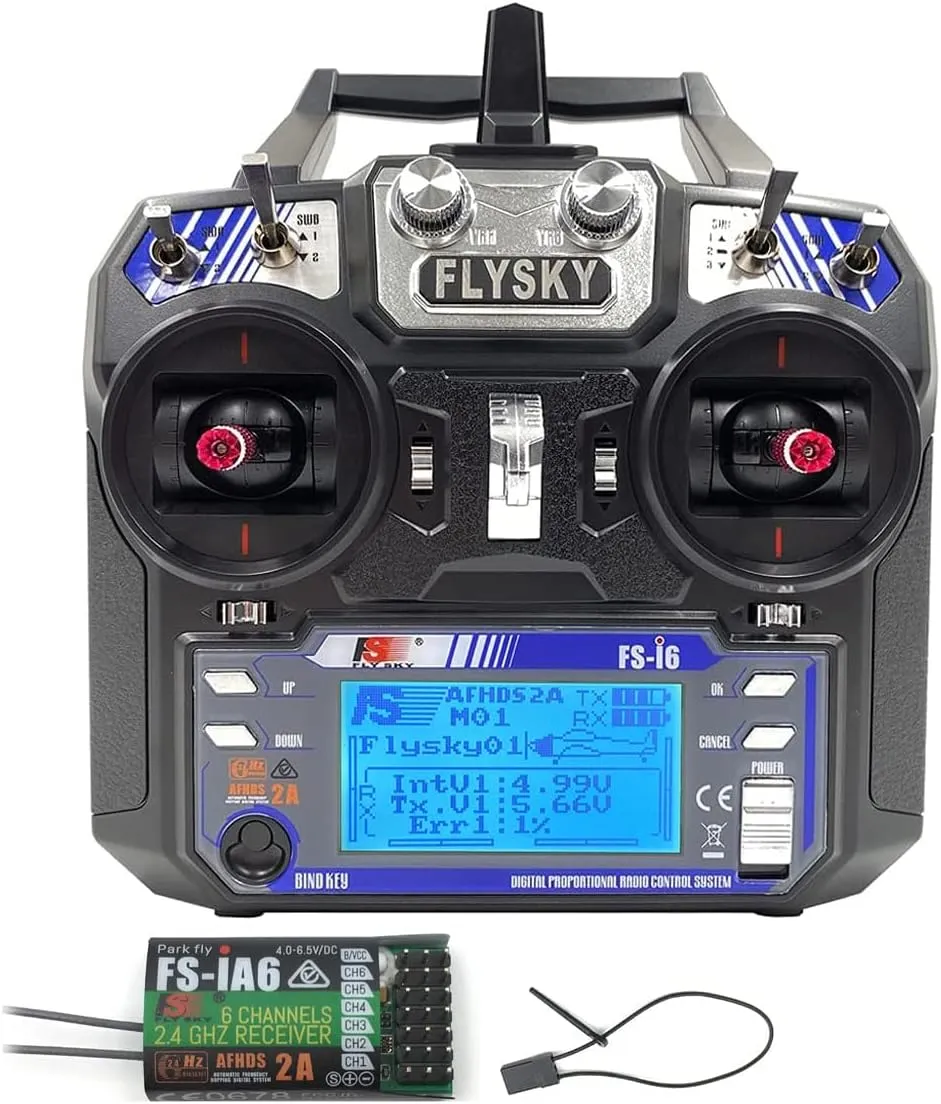

Package Included:
1 x FS-i6 transmitter
1 x FS-iA6 Receiver
1 x Manual
